作者：Tanck

博客：https://juejin.im/post/5dc4ea51e51d452d583140b9

1. 什么是Jenkins

Jenkins是开源CI&CD软件领导者， 提供超过1000个插件来支持构建、部署、自动化， 满足任何项目的需要。

2. 为什么需要Jenkins(DevOps)

我们日常开发一般流程: Commit -> Push -> Merge -> Build. 基本就算完成. 而Jenkins的存在就是代替这一些系列从而实现自动化,侧重在于后面几个阶段,我们可以做很多的事情. 自动化的过程是确保构建编译都是正确的,平时我们手动编译不同版本的时候难免可能会出错,有了它可以降低编译错误,提高构建速度. 然而一般我们Jenkins都是需要配合Docker来完成的,所以需要具备一定的Docker的基础与了解. 文末有Github地址,共享了DockerFile及JenkinsFile.Why Pipeline?（https://jenkins.io/doc/book/pipeline/declarative-versus-scripted-pipeline-syntax）

3. 有Jenkins在Android能实现什么？

• 当push一个commit到服务器,将构建结果提交到MR/PR上(MR/PR存在)

• 当push一个commit到服务器,执行构建-->多渠道-->签名-->发布到各大市场-->通知相关人员

• 当push一个commit到服务器,在指定的branch做一些freestyle

• 当push一个commit到服务器,创建一个TAG

• ....

详细如图(Gitlab CI/CD):

在MergeRequest/PullRequest中应用如下:

4. 一个DevOps基本序列

一个DevOps的工作序列基本主要区分与Jenkins Server两种工作模式,这两种工作模式分为:

• Webhook的方式(在Gitlab/Github配置event触发后的地址,即当Gitlab/Gtihub产生事件会通过HTTP/HTTPS的方式将一个事件详细发送给Jenkins Service,随后Jenkins Service收到该消息会解析并做定义的处理);

• 轮训方式;(即无需侵入Gitlab/Github,由Jenkins定期轮训对应仓库的代码,如果发生改变则立即出发构建.)

下面主要介绍一下以Webhook工作方式的时序图如下:

sequenceDiagramUser ->>Gitlab/Github:push a commitGitlab/Github-->>Jekins:push a message via webhookJenkins -->> Jenkins:Sync with branchs and do a build with freestyle if there are changesJenkins --x Gitlab/Github:Feedback some comments on MRorIM/EMAIL

这将产生一个流程图:
graph LRA(User)--Push a commit --> B(Gitlab/Github)B--Push a message via webhook --> C(Jenkins)
5. 构建一个的Android应用多分支步骤

构建一个的Android应用多分支步骤

• 配置一个Jenkins Server;(由于文章主要讲解Jenkins脚本高级应用,所以还请网上搜索相关环境搭建)

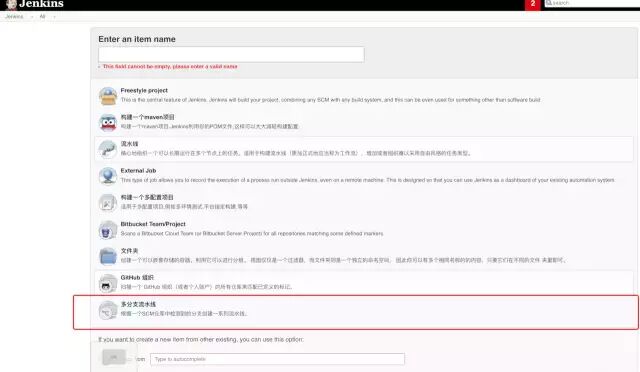

• 在Jenkins 里面创建一个应用如下图:

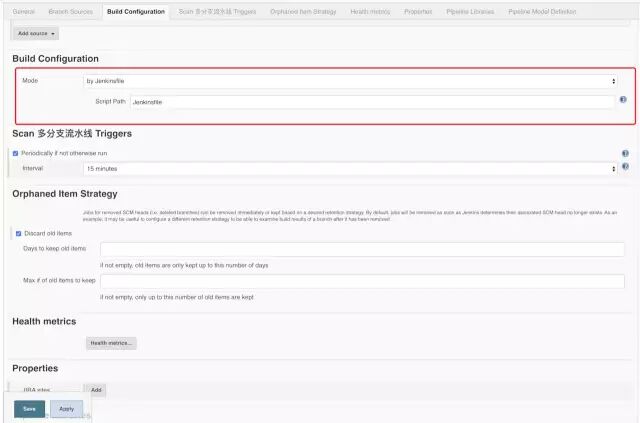

• 配置好对应的远程仓库地址后,我们需要指定Jenkins脚本路径如下:

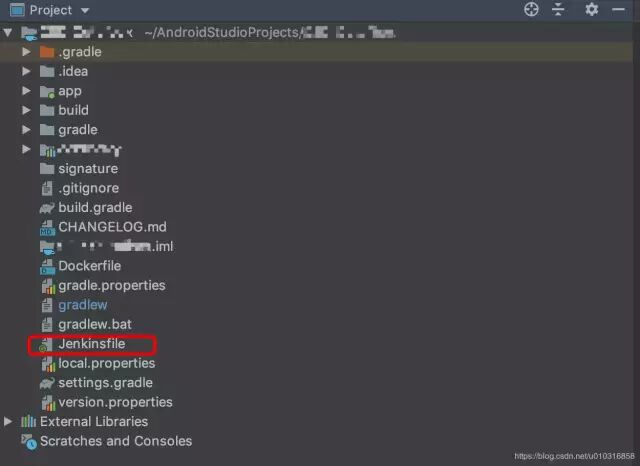

• 由于Jenkins配置的路径是在项目路径下,所以我们Android Studio也得配置在对应跟布局下:

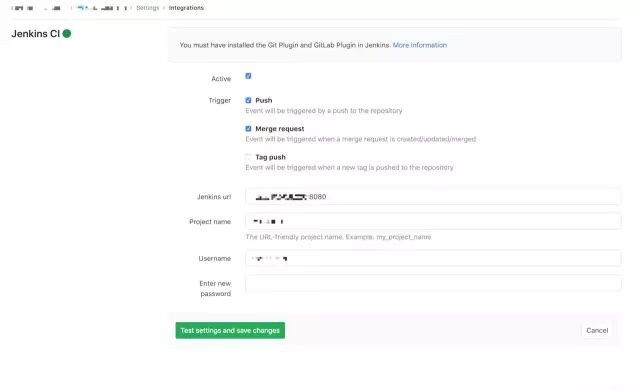

• 最后以Gitlab为例子配置Webhook如下:



所有的配置完毕后,接下来就是详解Jenkins脚本。

6. 脚本详解

Jenkins脚本详解(直接声明的方式):

pipeline {agentanystages {stage(Build) {steps {// Do the build with gradle../gradlew build}}stage(Test) {steps {// Do some test script}}stage(Deploy) {steps {// Deploy your project to other place}}}}

高级特性详解:

• 想要提交comment在MR/PR上: 一般是通过调用Gitlab/Github开放的API来实现,以Gitlab为例:

/*** Add the comment to gitlab on MRifthe MR is exist and state is OPEN*/def addCommentToGitLabMR(String commentContent) {branchHasMRID = sh(script:"curl --header \"PRIVATE-TOKEN:${env.gitUserToken}\"${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME}| grep -o iid\":[^,]* | head -n 1 | cut -b 6-", returnStdout:true).trim()echoCurrent Branch has MR id :+ branchHasMRIDif(branchHasMRID ==){echo"The id of MR doesnt exist on the gitlab. skip the comment on MR"}else{// TODO : Should be handled on first time.TheMRState = sh(script:"curl --header \"PRIVATE-TOKEN:${env.gitUserToken}\"${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME}| grep -o state\":[^,]* | head -n 1 | cut -b 9-14", returnStdout:true).trim()echoCurrent MR state is :+ TheMRStateif(TheMRState ==opened){sh"curl -d \"id=${XXPROJECT_ID}&merge_request_iid=${branchHasMRID}&body=${commentContent}\" --header \"PRIVATE-TOKEN:${env.gitUserToken}\"${GITLAB_SERVER_URL}/api/v4//projects/${XXPROJECT_ID}/merge_requests/${branchHasMRID}/notes"}else{echoThe MR not is opened, skip the comment on MR}}}

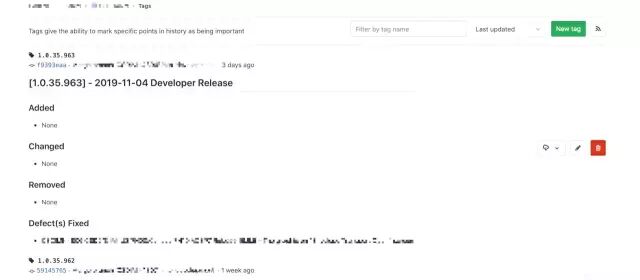

• 自动创建一个TAG且有CHANGELOG: 因为我们通过git tag创建的TAG一般是没有描述的,有时候比较难跟踪,所以我们可以调用Gitlab/Github API来创建一个TAG,效果如下:



defpushTag(String gitTagName, String gitTagContent) {sh"curl -d \"id=${XXPROJECT_ID}&tag_name=${gitTagName}&ref=development&release_description=${gitTagContent}\" --header \"PRIVATE-TOKEN:${env.gitUserToken}\"${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/repository/tags"}

• 将Gradle 缓存共享给Docker,这样每次构建的时候就不会在Docker里面每次去下载依赖包:

environment{GRADLE_CACHE=/tmp/gradle-user-cache}...agent {dockerfile{filenameDockerfile// https://github.com/gradle/gradle/issues/851args-v$GRADLE_CACHE/.gradle:$HOME/.gradle --net=host}}

完整的JenkinsFile：

!/usr/bin/env groovy//This JenkinsFile is based on a declarative format//https://jenkins.io/doc/book/pipeline/declarative-versus-scripted-pipeline-syntaxdef CSD_DEPLOY_BRANCH =development// Do not add the `def` for these fieldsXXPROJECT_ID =974GITLAB_SERVER_URL =http://gitlab.com// Or your serverpipeline {// 默认代理用主机,意味着用Jenkins主机来运行一下块agent anyoptions {// 配置当前branch不支持同时构建,为了避免资源竞争,当一个新的commit到来,会进入排队如果之前的构建还在进行disableConcurrentBuilds()// 链接到Gitlab的服务器,用于访问Gitlab一些APIgitLabConnection(Jenkins_CI_CD)}environment {// 配置缓存路径在主机GRADLE_CACHE =/tmp/gradle-user-cache}stages {// 初始化阶段stage(Setup) {steps {// 将初始化阶段修改到这次commit即Gitlab会展示对应的UIgitlabCommitStatus(name:Setup) {// 通过SLACK工具推送一个通知notifySlack(STARTED)echo"Setup Stage Starting. Depending on the Docker cache this may take a few "+"seconds to a couple of minutes."echo"${env.BRANCH_NAME}is the branch.  Subsequent steps may not run on branches that are not${CSD_DEPLOY_BRANCH}."script {cacheFileExist = sh(script:"[ -d${GRADLE_CACHE}]  && echo true || echo false ", returnStdout:true).trim()echoCurrent cacheFile is exist :+ cacheFileExist// Make dir if not existif(cacheFileExist ==false) sh"mkdir${GRADLE_CACHE}/ || true"}}}}// 构建阶段stage(Build) {agent {dockerfile {// 构建的时候指定一个DockerFile,该DockerFile有Android的构建环境filenameDockerfile// https://github.com/gradle/gradle/issues/851args-v $GRADLE_CACHE/.gradle:$HOME/.gradle --net=host}}steps {gitlabCommitStatus(name:Build) {script {echo"Build Stage Starting"echo"Building all types (debug, release, etc.) with lint checking"getGitAuthor()if(env.BRANCH_NAME == CSD_DEPLOY_BRANCH) {// TODO : Do some checks on your style// https://docs.gradle.org/current/userguide/gradle_daemon.htmlshchmod +x gradlew// Try with the all build types.sh"./gradlew build"}else{// https://docs.gradle.org/current/userguide/gradle_daemon.htmlshchmod +x gradlew// Try with the production build type.sh"./gradlew compileReleaseJavaWithJavac"}}}/* Comment out the inner cache rsync logicgitlabCommitStatus(name: Sync Gradle Cache) {script {if (env.BRANCH_NAME != CSD_DEPLOY_BRANCH) {// TODO : The max cache file should be added.echo Write updates to the Gradle cache back to the host// Write updates to the Gradle cache back to the host// -W, --whole-file:// With this option rsyncs delta-transfer algorithm is not used and the whole file is sent as-is instead.// The transfer may be faster if this option is used when the bandwidth between the source and// destination machines is higher than the bandwidth to disk (especially when the lqdiskrq is actually a networked filesystem).// This is the default when both the source and destination are specified as local paths.sh "rsync -auW ${HOME}/.gradle/caches ${HOME}/.gradle/wrapper ${GRADLE_CACHE}/ || true"} else {echo Not on the Deploy branch , Skip write updates to the Gradle cache back to the host}}}*/script {// Only the development branch can be triggeredif(env.BRANCH_NAME == CSD_DEPLOY_BRANCH) {gitlabCommitStatus(name:Signature) {// signing the apks with the platform keysignAndroidApks(keyStoreId:"platform",keyAlias:"platform",apksToSign:"**/*.apk",archiveSignedApks:false,skipZipalign:true)}gitlabCommitStatus(name:Deploy) {script {echo"Debug finding apks"// debug statement to show the signed apksshfind . -name "*.apk"// TODO : Deploy your apk to other place//Specific deployment to Production environment//echo "Deploying to Production environment"//sh ./gradlew app:publish -DbuildType=proCN}}}else{echoCurrent branch of the build not on the development branch, Skip the next steps!}}}// This post working on the docker. not on the jenkins of localpost {// The workspace should be cleaned if the build is failure.failure {// notFailBuild : if clean failed that not tell Jenkins failed.cleanWs notFailBuild:true}// The APKs should be deleted when the server is successfully built.success {script {// Only the development branch can be deleted these APKs.if(env.BRANCH_NAME == CSD_DEPLOY_BRANCH) {cleanWs notFailBuild:true, patterns: [[pattern:**/*.apk, type:INCLUDE]]}}}}}}post {always { deleteDir() }failure {addCommentToGitLabMR("\\:negative_squared_cross_mark\\: Jenkins Build \\`FAILURE\\`

 Results available at:[[${env.BUILD_NUMBER}${env.JOB_NAME}](${env.BUILD_URL})]")notifySlack(FAILED)}success {addCommentToGitLabMR("\\:white_check_mark\\: Jenkins Build \\`SUCCESS\\`

 Results available at:[[${env.BUILD_NUMBER}${env.JOB_NAME}](${env.BUILD_URL})]")notifySlack(SUCCESS)}unstable { notifySlack(UNSTABLE) }changed { notifySlack(CHANGED) }}}def addCommentToGitLabMR(String commentContent) {branchHasMRID = sh(script:"curl --header \"PRIVATE-TOKEN:${env.gitTagPush}\"${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME}| grep -o iid\":[^,]* | head -n 1 | cut -b 6-", returnStdout:true).trim()echoCurrent Branch has MR id :+ branchHasMRIDif(branchHasMRID ==) {echo"The id of MR doesnt exist on the gitlab. skip the comment on MR"}else{// TODO : Should be handled on first time.TheMRState = sh(script:"curl --header \"PRIVATE-TOKEN:${env.gitTagPush}\"${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/merge_requests?source_branch=${env.BRANCH_NAME}| grep -o state\":[^,]* | head -n 1 | cut -b 9-14", returnStdout:true).trim()echoCurrent MR state is :+ TheMRStateif(TheMRState ==opened) {sh"curl -d \"id=${XXPROJECT_ID}&merge_request_iid=${branchHasMRID}&body=${commentContent}\" --header \"PRIVATE-TOKEN:${env.gitTagPush}\"${GITLAB_SERVER_URL}/api/v4//projects/${XXPROJECT_ID}/merge_requests/${branchHasMRID}/notes"}else{echoThe MR not is opened, skip the comment on MR}}}def pushTag(String gitTagName, String gitTagContent) {sh"curl -d \"id=${XXPROJECT_ID}&tag_name=${gitTagName}&ref=development&release_description=${gitTagContent}\" --header \"PRIVATE-TOKEN:${env.gitTagPush}\"${GITLAB_SERVER_URL}/api/v4/projects/${XXPROJECT_ID}/repository/tags"}//Helper methods//TODO Probably can extract this into a JenkinsFile shared librarydef getGitAuthor() {def commitSHA = sh(returnStdout:true, script:git rev-parse HEAD)author = sh(returnStdout:true, script:"git --no-pager show -s --format=%an${commitSHA}").trim()echo"Commit author: "+ author}def notifySlack(String buildStatus =STARTED) {// Build status of null means success.buildStatus = buildStatus ?:SUCCESSdef colorif(buildStatus ==STARTED) {color =D4DADF}elseif(buildStatus ==SUCCESS) {color =good}elseif(buildStatus ==UNSTABLE|| buildStatus ==CHANGED) {color =warning}else{color =danger}def msg ="${buildStatus}: `${env.JOB_NAME}`${env.BUILD_NUMBER}:\n${env.BUILD_URL}"slackSend(color: color, message: msg)}

DockerFile支持Android构建环境(包含JNI,API:26.0.3+)及JenkinsFile开源在Github:（https://github.com/Softtanck/JenkinsWithDockerInAndroid）
