使用Jenkins和Argocd实现CI—CD

1987web2023-10-06WEB开发177

欢迎关注个人公众号：运维开发故事更多精彩内容等你来看。

欢迎关注个人公众号：运维开发故事更多精彩内容等你来看。

CI/CD并不是陌生的东西，大部分企业都有自己的CI/CD，不过今天我要介绍的是使用Jenkins和GitOps实现CI/CD。

整体架构如下：

涉及的软件以及版本信息如下：

软件	版本

涉及的技术：

Jenkins shareLibrary
Jenkins pipeline
Jenkinsfile
Argocd
sonarqube api操作

软件安装

软件安装我这里不贴具体的安装代码了，所有的代码我都放在了github上，地址：https://github.com/cool-ops/kubernetes-software-yaml.git

所以这里默认你已经安装好所以软件了。

在Jenkins上安装如下插件

kubernetes
AnsiColor
HTTP Request
SonarQube Scanner
Utility Steps
Email Extension Template
Gitlab Hook
Gitlab

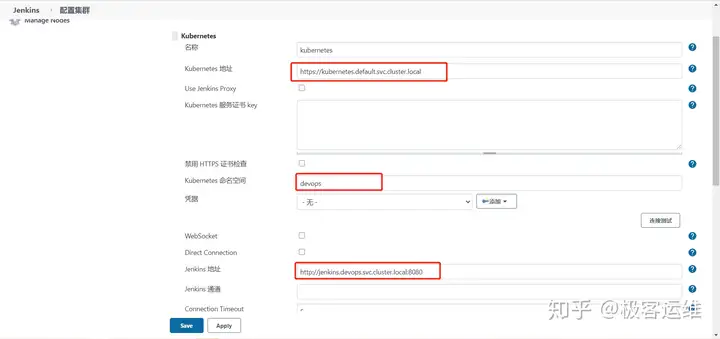

在Jenkins上配置Kubernetes集群信息

在系统管理-->系统配置-->cloud

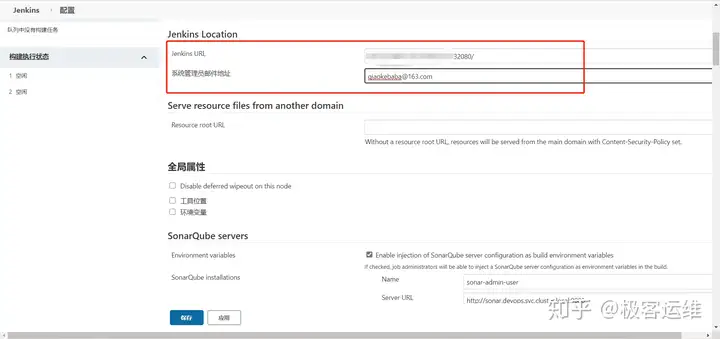

在Jenkins上配置邮箱地址

系统设置-->系统配置-->Email

（1）设置管理员邮箱

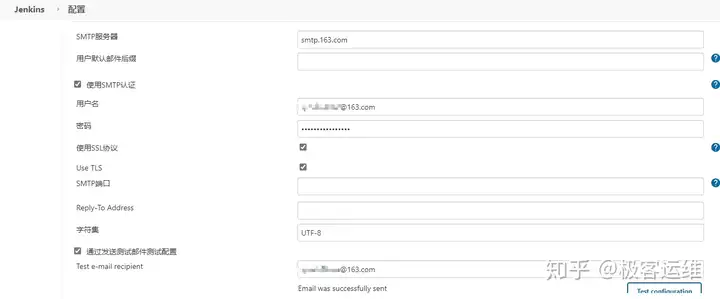

配置SMTP服务

在Gitlab上准备一个测试代码

我这里有一个简单的java测试代码，地址如下：https://gitee.com/jokerbai/springboot-helloworld.git

可以将其导入到自己的gitlab仓库。

在Gitlab上创建一个共享库

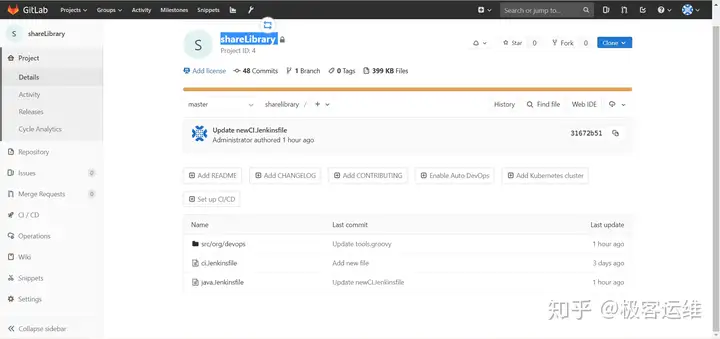

首先在gitlab上创建一个共享库，我这里取名叫shareLibrary，如下：

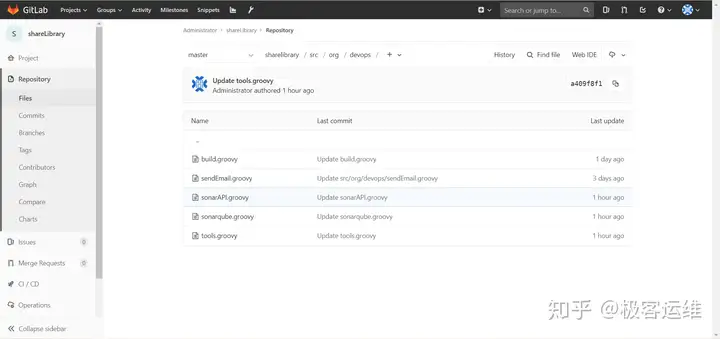

然后创建src/org/devops目录，并在该目录下创建一下文件。

它们的内容分别如下：

build.groovy

package org.devops

// docker容器直接build
def DockerBuild(buildShell){
    sh """
        ${buildShell}
    """
}

sendEmail.groovy

package org.devops

//定义邮件内容
def SendEmail(status,emailUser){
    emailext body: """







                    本邮件由系统自动发出，无需回复！

                    各位同事，大家好，以下为${JOB_NAME}项目构建信息


                    构建结果 - ${status}





                            构建信息





                                项目名称：${JOB_NAME}
                                构建编号：${BUILD_ID}
                                构建状态: ${status}
                                项目地址：${BUILD_URL}
                                构建日志：${BUILD_URL}console






              """,
            subject: "Jenkins-${JOB_NAME}项目构建信息 ",
            to: emailUser

}

sonarAPI.groovy

package ore.devops

// 封装HTTP请求
def HttpReq(requestType,requestUrl,requestBody){
    // 定义sonar api接口
    def sonarServer = "http://sonar.devops.svc.cluster.local:9000/api"
    result = httpRequest authentication: sonar-admin-user,
            httpMode: requestType,
            contentType: "APPLICATION_JSON",
            consoleLogResponseBody: true,
            ignoreSslErrors: true,
            requestBody: requestBody,
            url: "${sonarServer}/${requestUrl}"
    return result
}

// 获取soanr项目的状态
def GetSonarStatus(projectName){
    def apiUrl = "project_branches/list?project=${projectName}"
    // 发请求
    response = HttpReq("GET",apiUrl,"")
    // 对返回的文本做JSON解析
    response = readJSON text: """${response.content}"""
    // 获取状态值
    result = response["branches"][0]["status"]["qualityGateStatus"]
    return result
}

// 获取sonar项目，判断项目是否存在
def SearchProject(projectName){
    def apiUrl = "projects/search?projects=${projectName}"
    // 发请求
    response = HttpReq("GET",apiUrl,"")
    println "搜索的结果：${response}"
    // 对返回的文本做JSON解析
    response = readJSON text: """${response.content}"""
    // 获取total字段，该字段如果是0则表示项目不存在,否则表示项目存在
    result = response["paging"]["total"]
    // 对result进行判断
    if (result.toString() == "0"){
        return "false"
    }else{
        return "true"
    }
}

// 创建sonar项目
def CreateProject(projectName){
    def apiUrl = "projects/create?name=${projectName}&project=${projectName}"
    // 发请求
    response = HttpReq("POST",apiUrl,"")
    println(response)
}

// 配置项目质量规则
def ConfigQualityProfiles(projectName,lang,qpname){
    def apiUrl = "qualityprofiles/add_project?language=${lang}&project=${projectName}&qualityProfile=${qpname}"
    // 发请求
    response = HttpReq("POST",apiUrl,"")
    println(response)
}

// 获取质量阈ID
def GetQualityGateId(gateName){
    def apiUrl = "qualitygates/show?name=${gateName}"
    // 发请求
    response = HttpReq("GET",apiUrl,"")
    // 对返回的文本做JSON解析
    response = readJSON text: """${response.content}"""
    // 获取total字段，该字段如果是0则表示项目不存在,否则表示项目存在
    result = response["id"]
    return result
}

// 更新质量阈规则
def ConfigQualityGate(projectKey,gateName){
    // 获取质量阈id
    gateId = GetQualityGateId(gateName)
    apiUrl = "qualitygates/select?projectKey=${projectKey}&gateId=${gateId}"
    // 发请求
    response = HttpReq("POST",apiUrl,"")
    println(response)
}

//获取Sonar质量阈状态
def GetProjectStatus(projectName){
    apiUrl = "project_branches/list?project=${projectName}"
    response = HttpReq("GET",apiUrl,)

    response = readJSON text: """${response.content}"""
    result = response["branches"][0]["status"]["qualityGateStatus"]

    //println(response)

   return result
}

sonarqube.groovy

package ore.devops

def SonarScan(projectName,projectDesc,projectPath){
    // sonarScanner安装地址
    def sonarHome = "/opt/sonar-scanner"
    // sonarqube服务端地址
    def sonarServer = "http://sonar.devops.svc.cluster.local:9000/"
    // 以时间戳为版本
    def scanTime = sh returnStdout: true, script: date +%Y%m%d%H%m%S
    scanTime = scanTime - "\n"
    sh """
    ${sonarHome}/bin/sonar-scanner  -Dsonar.host.url=${sonarServer}  \
    -Dsonar.projectKey=${projectName}  \
    -Dsonar.projectName=${projectName}  \
    -Dsonar.projectVersion=${scanTime} \
    -Dsonar.login=admin \
    -Dsonar.password=admin \
    -Dsonar.ws.timeout=30 \
    -Dsonar.projectDescription="${projectDesc}"  \
    -Dsonar.links.homepage=http://www.baidu.com \
    -Dsonar.sources=${projectPath} \
    -Dsonar.sourceEncoding=UTF-8 \
    -Dsonar.java.binaries=target/classes \
    -Dsonar.java.test.binaries=target/test-classes \
    -Dsonar.java.surefire.report=target/surefire-reports -X

    echo "${projectName}  scan success!"
    """
}

tools.groovy

package org.devops

//格式化输出
def PrintMes(value,color){
    colors = [red   : "\033[40;31m >>>>>>>>>>>${value}<<<<<<<<<<< \033[0m",
              blue  : "\033[47;34m ${value} \033[0m",
              green : "[1;32m>>>>>>>>>>${value}>>>>>>>>>>[m",
              green1 : "\033[40;32m >>>>>>>>>>>${value}<<<<<<<<<<< \033[0m" ]
    ansiColor(xterm) {
        println(colors[color])
    }
}


// 获取镜像版本
def createVersion() {
    // 定义一个版本号作为当次构建的版本，输出结果 20191210175842_69
    return new Date().format(yyyyMMddHHmmss) + "_${env.BUILD_ID}"
}


// 获取时间
def getTime() {
    // 定义一个版本号作为当次构建的版本，输出结果 20191210175842
    return new Date().format(yyyyMMddHHmmss)
}

在Gitlab上创建一个YAML管理仓库

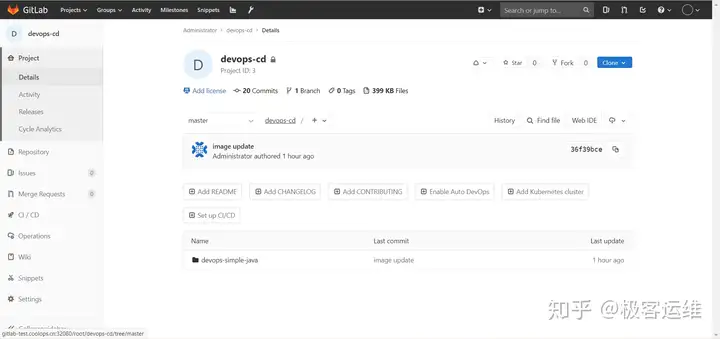

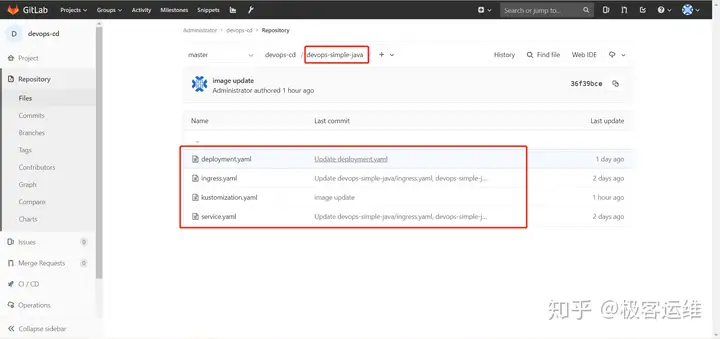

我这里创建了一个叫devops-cd的共享仓库，如下：

然后以应用名创建一个目录，并在目录下创建以下几个文件。

它们的内容分别如下。

service.yaml

kind: Service
apiVersion: v1
metadata:
  name: the-service
  namespace: default
spec:
  selector:
    deployment: hello
  type: NodePort
  ports:
  - protocol: TCP
    port: 8080
    targetPort: 8080

ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: the-ingress
  namespace: default
spec:
  rules:
    - host: test.coolops.cn
      http:
        paths:
          - backend:
              serviceName: the-service
              servicePort: 8080
            path: /

deploymeny.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: the-deployment
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      deployment: hello
  template:
    metadata:
      labels:
        deployment: hello
    spec:
      containers:
        - args:
            - -jar
            - /opt/myapp.jar
            - --server.port=8080
          command:
            - java
          env:
            - name: HOST_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.hostIP
          image: registry.cn-hangzhou.aliyuncs.com/rookieops/myapp:latest
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /bin/sh
                  - -c
                  - /bin/sleep 30
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /hello
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 60
            periodSeconds: 15
            successThreshold: 1
            timeoutSeconds: 1
          name: myapp
          ports:
            - containerPort: 8080
              name: http
              protocol: TCP
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /hello
              port: 8080
              scheme: HTTP
            periodSeconds: 15
            successThreshold: 1
            timeoutSeconds: 1
          resources:
            limits:
              cpu: "1"
              memory: 2Gi
            requests:
              cpu: 100m
              memory: 1Gi
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
      dnsPolicy: ClusterFirstWithHostNet
      imagePullSecrets:
        - name: gitlab-registry

kustomization.yaml

Example configuration for the webserver
 at https://github.com/monopole/hello
commonLabels:
  app: hello

resources:
- deployment.yaml
- service.yaml
- ingress.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
images:
- name: registry.cn-hangzhou.aliyuncs.com/rookieops/myapp
  newTag: "20201127150733_70"
namespace: dev

在Jenkins上配置共享库

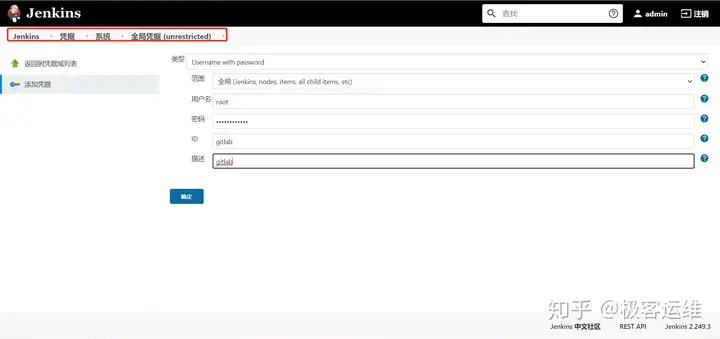

（1）需要在Jenkins上添加凭证

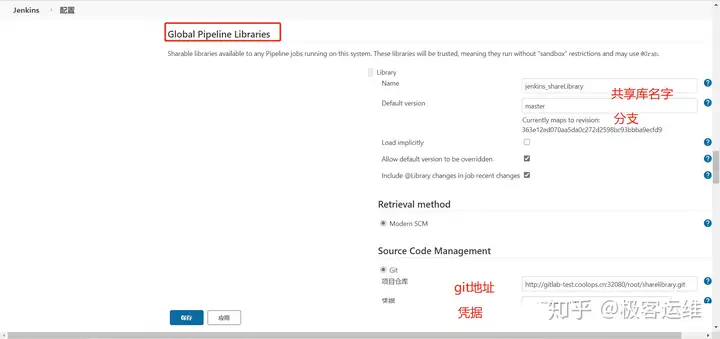

（2）在Jenkins的系统配置里面配置共享库（系统管理-->系统配置）

然后点击应用并保存

然后我们可以用一个简单的Jenkinsfile测试一下共享库，看配置是否正确。

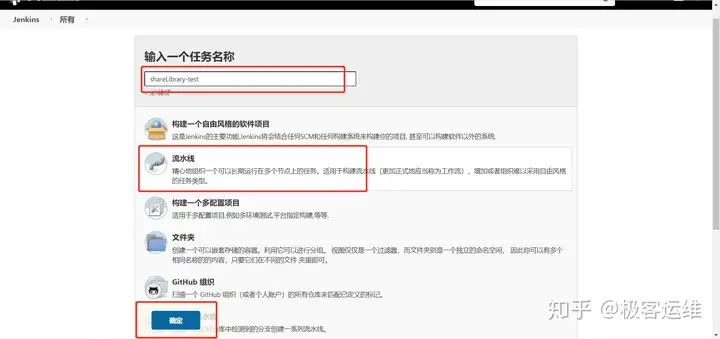

在Jenkins上创建一个项目，如下：

然后在最地下的pipeline处贴入以下代码：

def labels = "slave-${UUID.randomUUID().toString()}"
// 引用共享库
@Library("jenkins_shareLibrary")

// 应用共享库中的方法
def tools = new org.devops.tools()

pipeline {
    agent {
    kubernetes {
        label labels
      yaml """
apiVersion: v1
kind: Pod
metadata:
  labels:
    some-label: some-label-value
spec:
  volumes:
  - name: docker-sock
    hostPath:
      path: /var/run/docker.sock
      type:
  containers:
  - name: jnlp
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/inbound-agent:4.3-4
  - name: maven
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/maven:3.5.0-alpine
    command:
    - cat
    tty: true
  - name: docker
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/docker:19.03.11
    command:
    - cat
    tty: true
    volumeMounts:
    - name: docker-sock
      mountPath: /var/run/docker.sock
"""
    }
  }
    stages {
        stage(Checkout) {
            steps {
                script{
                    tools.PrintMes("拉代码","green")
                }
            }
        }
        stage(Build) {
            steps {
                container(maven) {
                    script{
                        tools.PrintMes("编译打包","green")
                    }
                }
            }
        }
        stage(Make Image) {
            steps {
                container(docker) {
                    script{
                        tools.PrintMes("构建镜像","green")
                    }
                }
            }
        }
    }
}

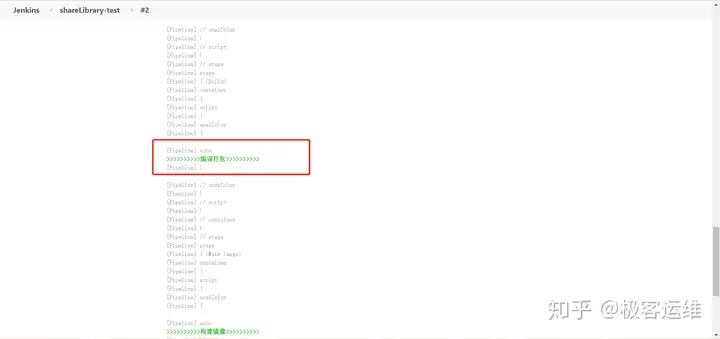

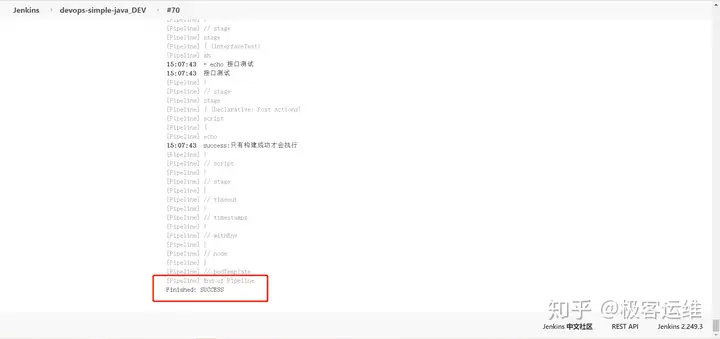

然后点击保存并运行，如果看到输出有颜色，就代表共享库配置成功，如下：

到此共享库配置完成。

编写Jenkinsfile

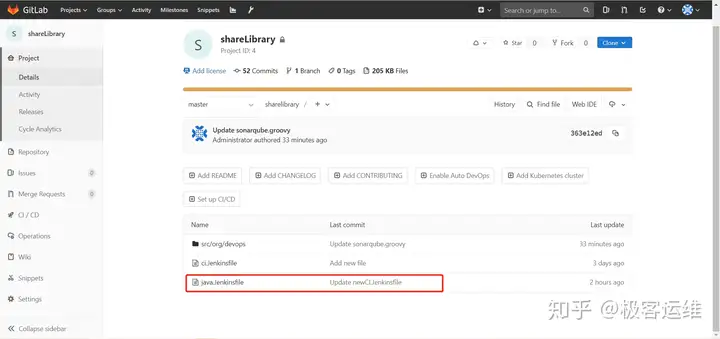

整个java的Jenkinsfile如下：

def labels = "slave-${UUID.randomUUID().toString()}"

// 引用共享库
@Library("jenkins_shareLibrary")

// 应用共享库中的方法
def tools = new org.devops.tools()
def sonarapi = new org.devops.sonarAPI()
def sendEmail = new org.devops.sendEmail()
def build = new org.devops.build()
def sonar = new org.devops.sonarqube()

// 前端传来的变量
def gitBranch = env.branch
def gitUrl = env.git_url
def buildShell = env.build_shell
def image = env.image
def dockerRegistryUrl = env.dockerRegistryUrl
def devops_cd_git = env.devops_cd_git



pipeline {
    agent {
    kubernetes {
        label labels
      yaml """
apiVersion: v1
kind: Pod
metadata:
  labels:
    some-label: some-label-value
spec:
  volumes:
  - name: docker-sock
    hostPath:
      path: /var/run/docker.sock
      type:
  - name: maven-cache
    persistentVolumeClaim:
      claimName: maven-cache-pvc
  containers:
  - name: jnlp
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/inbound-agent:4.3-4
  - name: maven
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/maven:3.5.0-alpine
    command:
    - cat
    tty: true
    volumeMounts:
    - name: maven-cache
      mountPath: /root/.m2
  - name: docker
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/docker:19.03.11
    command:
    - cat
    tty: true
    volumeMounts:
    - name: docker-sock
      mountPath: /var/run/docker.sock
  - name: sonar-scanner
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/sonar-scanner:latest
    command:
    - cat
    tty: true
  - name: kustomize
    image: registry.cn-hangzhou.aliyuncs.com/rookieops/kustomize:v3.8.1
    command:
    - cat
    tty: true
"""
    }
  }

    environment{
        auth = joker
    }

    options {
        timestamps()    // 日志会有时间
        skipDefaultCheckout()   // 删除隐式checkout scm语句
        disableConcurrentBuilds()   //禁止并行
        timeout(time:1,unit:HOURS) //设置流水线超时时间
    }


    stages {
        // 拉取代码
        stage(GetCode) {
            steps {
                checkout([$class: GitSCM, branches: [[name: "${gitBranch}"]],
                    doGenerateSubmoduleConfigurations: false,
                    extensions: [],
                    submoduleCfg: [],
                    userRemoteConfigs: [[credentialsId: 83d2e934-75c9-48fe-9703-b48e2feff4d8, url: "${gitUrl}"]]])
                }
            }

        // 单元测试和编译打包
        stage(Build&Test) {
            steps {
                container(maven) {
                    script{
                        tools.PrintMes("编译打包","blue")
                        build.DockerBuild("${buildShell}")
                    }
                }
            }
        }
        // 代码扫描
        stage(CodeScanner) {
            steps {
                container(sonar-scanner) {
                    script {
                        tools.PrintMes("代码扫描","green")
                        tools.PrintMes("搜索项目","green")
                        result = sonarapi.SearchProject("${JOB_NAME}")
                        println(result)

                        if (result == "false"){
                            println("${JOB_NAME}---项目不存在,准备创建项目---> ${JOB_NAME}！")
                            sonarapi.CreateProject("${JOB_NAME}")
                        } else {
                            println("${JOB_NAME}---项目已存在！")
                        }

                        tools.PrintMes("代码扫描","green")
                        sonar.SonarScan("${JOB_NAME}","${JOB_NAME}","src")

                        sleep 10
                        tools.PrintMes("获取扫描结果","green")
                        result = sonarapi.GetProjectStatus("${JOB_NAME}")

                        println(result)
                        if (result.toString() == "ERROR"){
                            toemail.Email("代码质量阈错误！请及时修复！",userEmail)
                            error " 代码质量阈错误！请及时修复！"

                        } else {
                            println(result)
                        }
                    }
                }
            }
        }
        // 构建镜像
        stage(BuildImage) {
            steps {
                withCredentials([[$class: UsernamePasswordMultiBinding,
                credentialsId: dockerhub,
                usernameVariable: DOCKER_HUB_USER,
                passwordVariable: DOCKER_HUB_PASSWORD]]) {
                    container(docker) {
                        script{
                            tools.PrintMes("构建镜像","green")
                            imageTag = tools.createVersion()
                            sh """
                            docker login ${dockerRegistryUrl} -u ${DOCKER_HUB_USER} -p ${DOCKER_HUB_PASSWORD}

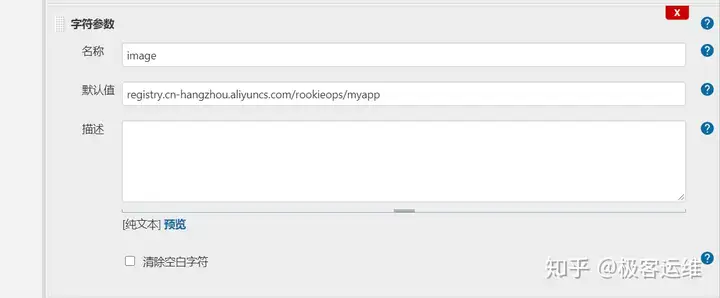

                            docker build -t ${image}:${imageTag} .
                            docker push ${image}:${imageTag}
                            docker rmi ${image}:${imageTag}
                            """
                        }
                    }
                }
            }
        }
        // 部署
        stage(Deploy) {
            steps {
                 withCredentials([[$class: UsernamePasswordMultiBinding,
                credentialsId: ci-devops,
                usernameVariable: DEVOPS_USER,
                passwordVariable: DEVOPS_PASSWORD]]){
                    container(kustomize) {
                        script{
                            APP_DIR="${JOB_NAME}".split("_")[0]
                            sh """

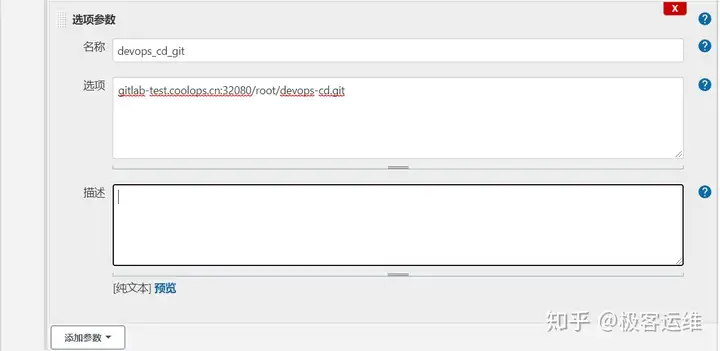

                            git remote set-url origin http://${DEVOPS_USER}:${DEVOPS_PASSWORD}@${devops_cd_git}
                            git config --global user.name "Administrator"
                            git config --global user.email "coolops@163.com"
                            git clone http://${DEVOPS_USER}:${DEVOPS_PASSWORD}@${devops_cd_git} /opt/devops-cd
                            cd /opt/devops-cd
                            git pull
                            cd /opt/devops-cd/${APP_DIR}
                            kustomize edit set image ${image}:${imageTag}
                            git commit -am image update
                            git push origin master
                            """
                        }
                    }
                }
            }
        }
        // 接口测试
        stage(InterfaceTest) {
            steps{
                sh echo "接口测试"
            }
        }
    }
    // 构建后的操作
    post {
        success {
            script{
                println("success:只有构建成功才会执行")
                currentBuild.description += "\n构建成功！"
                // deploy.AnsibleDeploy("${deployHosts}","-m ping")

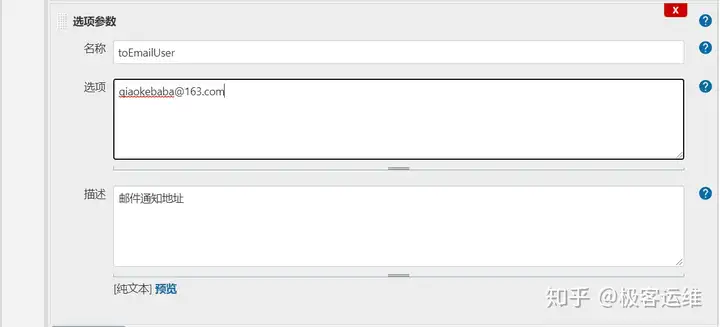

                sendEmail.SendEmail("构建成功",toEmailUser)
                // dingmes.SendDingTalk("构建成功 ✅")
            }
        }
        failure {
            script{
                println("failure:只有构建失败才会执行")
                currentBuild.description += "\n构建失败!"
                sendEmail.SendEmail("构建失败",toEmailUser)
                // dingmes.SendDingTalk("构建失败 ❌")
            }
        }
        aborted {
            script{
                println("aborted:只有取消构建才会执行")
                currentBuild.description += "\n构建取消!"
                sendEmail.SendEmail("取消构建",toEmailUser)
                // dingmes.SendDingTalk("构建失败 ❌","暂停或中断")
            }
        }
    }
}

需要在Jenkins上创建两个凭证，一个id叫dockerhub，一个叫ci-devops，还有一个叫sonar-admin-user。

dockerhub是登录镜像仓库的用户名和密码。

ci-devops是管理YAML仓库的用户名和密码。

sonar-admin-user是管理sonarqube的用户名和密码。

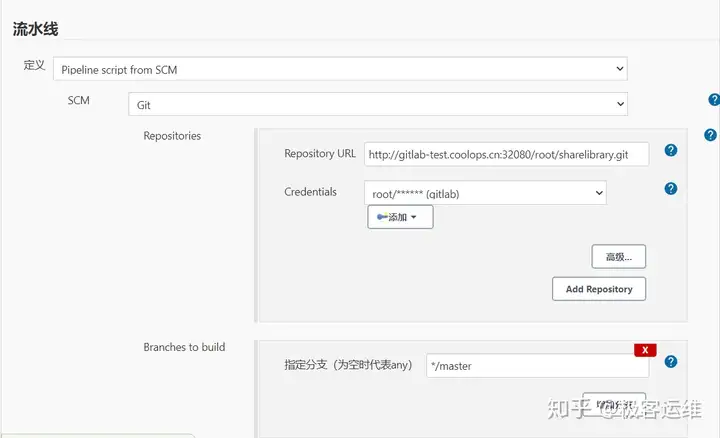

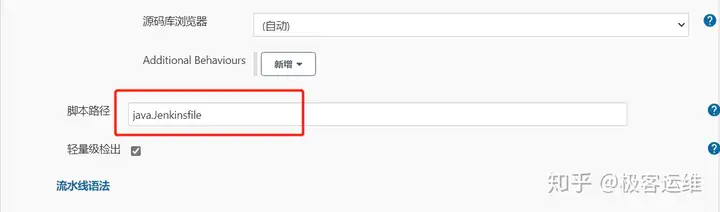

然后将这个Jenkinsfile保存到shareLibrary的根目录下，命名为java.Jenkinsfile。
