Jenkins集成GitLab

1987web2023-10-06WEB开发70

Jenkins免密拉取GitLab项目

1.在Jenkins上为GitLab创建一个专有的拉取代码的账号Jenkins需要构建哪些项目就在GitLab给予账号相应权限我这里已经创建过Jenkins用户，下面用它登录后添加SSH-KEY

2.在Jenkins服务器上生成ssh-key

[root@jenkins~]ssh-keygen-t rsaGeneratingpublic/privatersa key pair.Enterfileinwhich to save the key(/root/.ssh/id_rsa):Enterpassphrase(emptyfornopassphrase):Entersame passphrase again:Youridentification has been savedin/root/.ssh/id_rsa.Yourpublickey has been savedin/root/.ssh/id_rsa.pub.Thekey fingerprintis:SHA256:IUQIuu0SAdSbZvENbIjFYTrUrnuqKGBmZtwPj6lvz60root@jenkinsThekeys randomart image is:+---[RSA2048]----+|ooB=+oo||ooo*.=||oo.*+.||+.*.o.||+*S||.@o||O o*||oo=.o.||=o*..E..|+----[SHA256]-----+

查看公钥

[root@jenkins~]cat/root/.ssh/id_rsa.pubssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC7ckQQf4N93Rjf0ts3Lk4siL6FZmZiBiB+ouwTgw9kKof2NeJTguf0aNfDsgSEet4+bJ53ZKztsFZE/C+sqk7grqeLeYDFBWgdZBz1dmCYT51tRFmZPDEDclOIMc2tz0G50g6DFA1dvIfkzeVbKjBNN0o80FSAwAzrtjMrkyaDcrOmYekiSPM8JYJTTcFLCzIBXz7SXOmKH5vyoAIVpdcwnIhkHNLKfD0MdzGb7Kz/pKMnLubodcxyNir6fqw76qwMe1DE0NtQzpaCrTYhVnAizVqCDek0GMZjTG1vWYNn6a8G7omV3Gde1XjcmjAj6ftVQiVLBRJaIGKI4R/B//nd root@jenkins

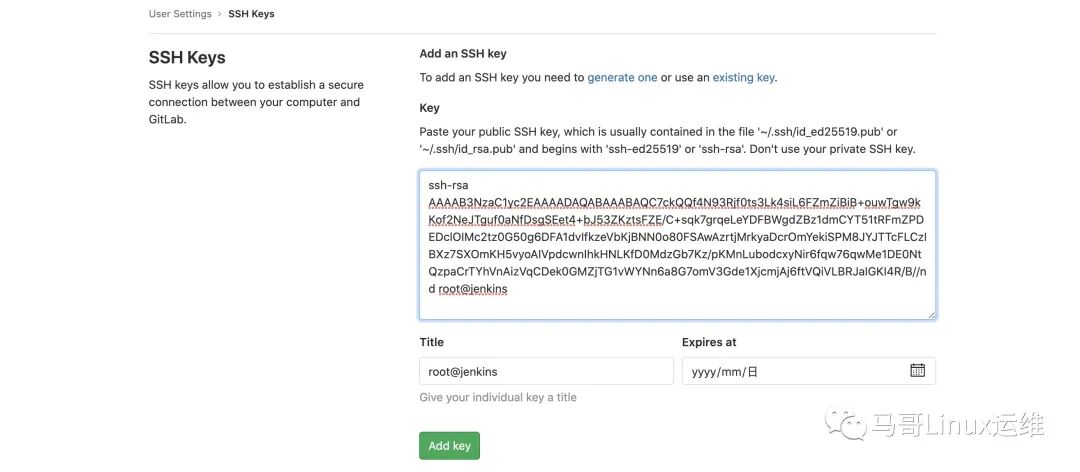

将Jenkins的公钥填入GitLab账号中

3.测试SSH-KEY到jenkins服务器上拉取项目来测试ssh-key免密是否生效

[root@jenkins~]yum install git-y[root@jenkins~]git clone git@106.14.10.124:dev01/sample.git正克隆到sample...Theauthenticityofhost106.14.10.124 (106.14.10.124)cant be established.ECDSA key fingerprintisSHA256:bO22/HlgAAGXi9CXTxDE6wvNCUcTs2OajL9PinZMN/0.ECDSA key fingerprintisMD5:ec:4f:14:0a:b6:72:cf:6e:da:5b:fa:5b:be:b9:2f:db.Areyou sure you want tocontinueconnecting(yes/no)?yesWarning:Permanentlyadded106.14.10.124(ECDSA)to the listofknown hosts.remote:Enumeratingobjects:6,done.remote:Countingobjects:100%(6/6),done.remote:Compressingobjects:100%(4/4),done.remote:Total6(delta0),reused0(delta0),pack-reused0接收对象中:100%(6/6),done.

如上，ssh-key已生效

配置jenkins自动拉取代码

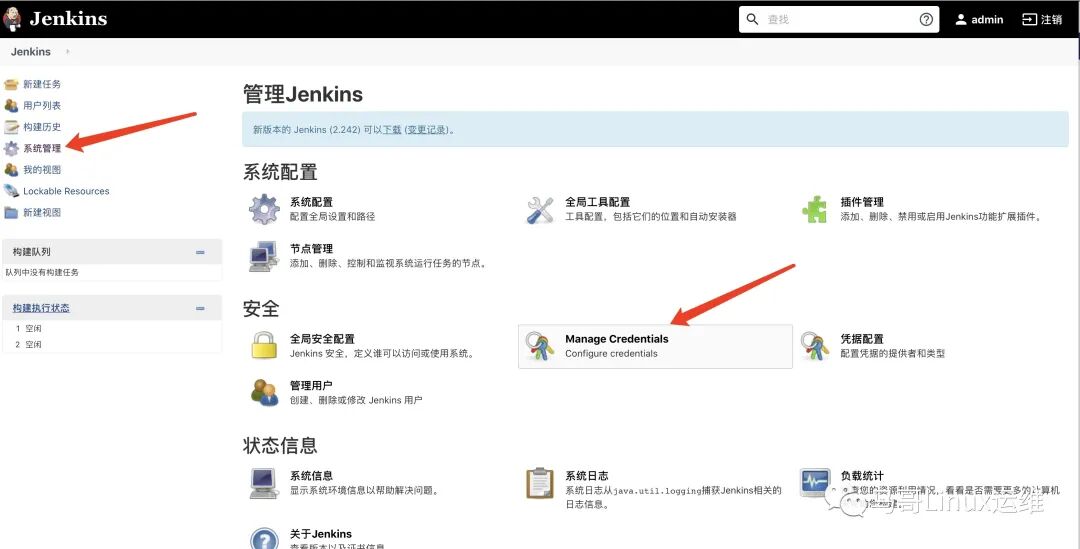

1.jenkins 服务器添加证书系统配置——》Manage Credentials

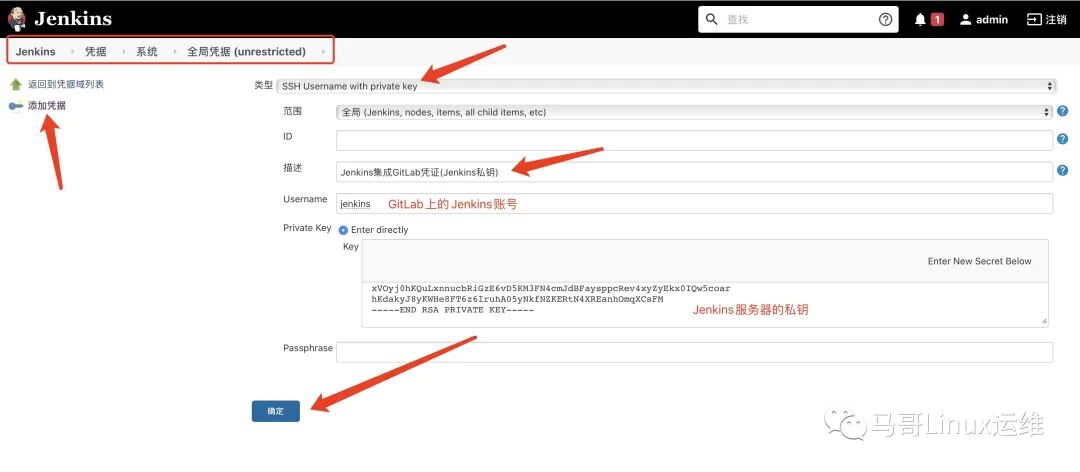

系统配置——》Manage Credentials——》Jenkins——》全局凭证——》添加凭证

这样的话Jenkins服务器拉取GitLab的代码就不需要再进行认证了。

Jenkins安装GitLab插件

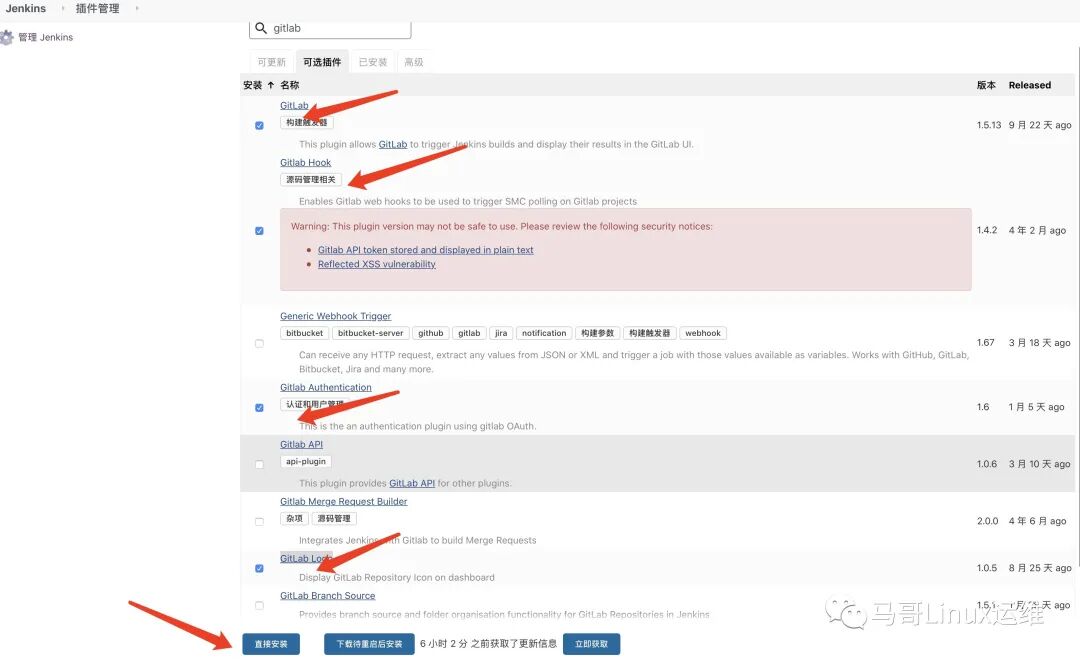

1.安装插件插件名称：

•GitLab•Gitlab Hook•Gitlab Authentication•GitLab Logo

安装完成后重启Jenkins

GitLab为Jenkins生成Token

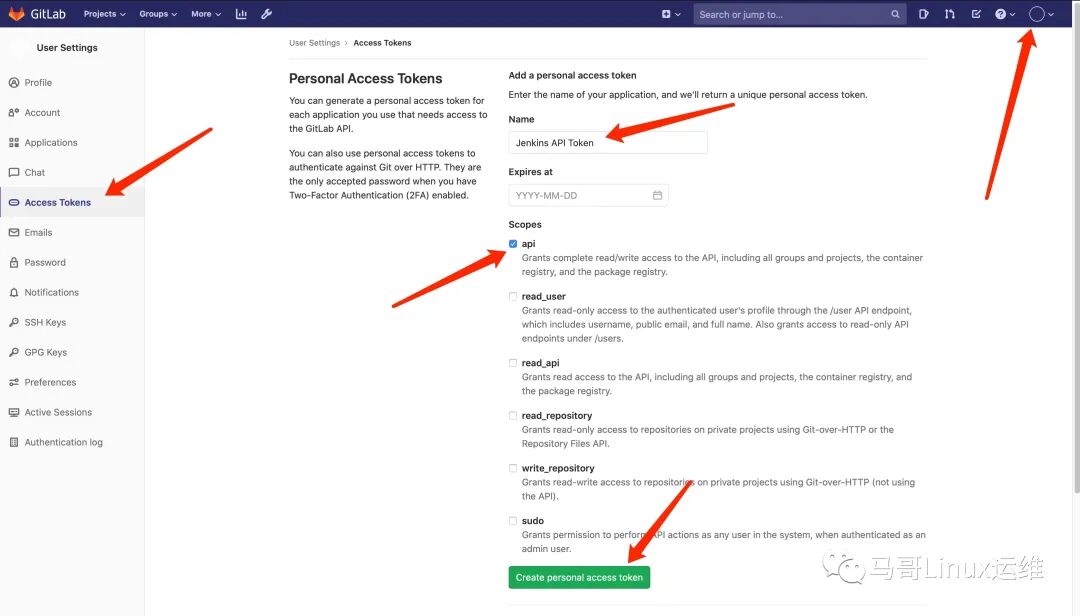

1.我们使用Jenkins用户登录GitLab然后使用Jenkins用户创建Token

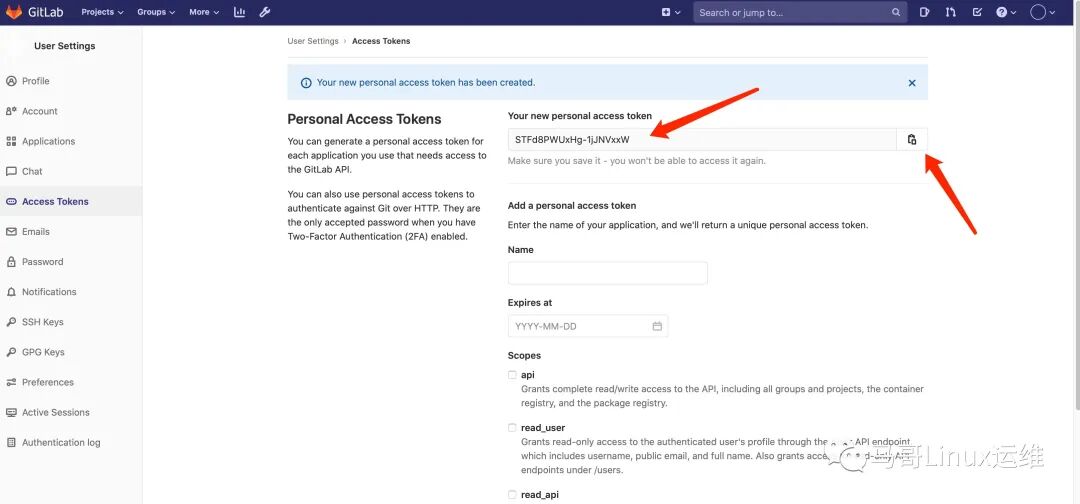

2.复制创建的Token

3.打开Jenkins系统管理——》系统配置

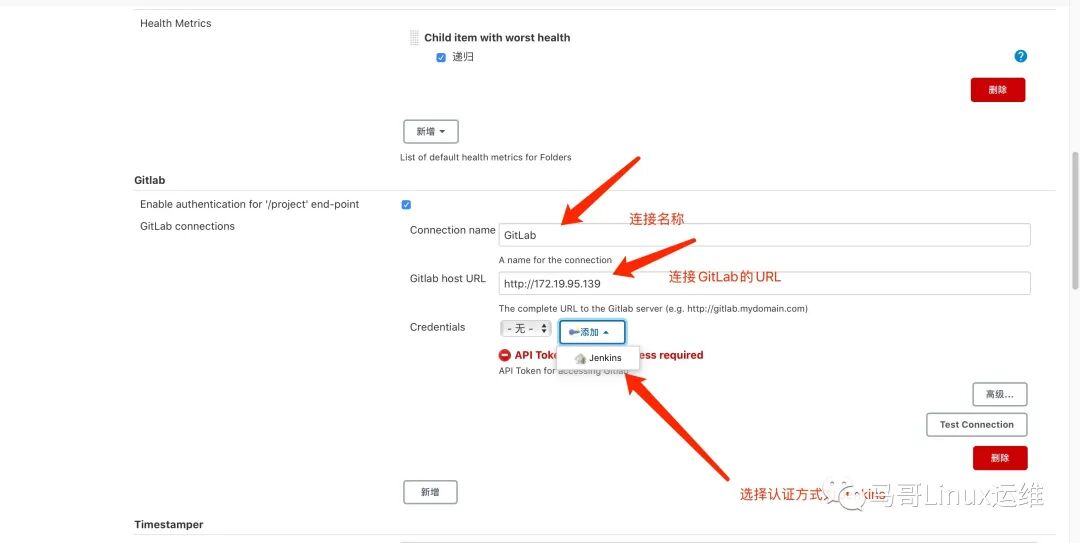

输入以下相关内容

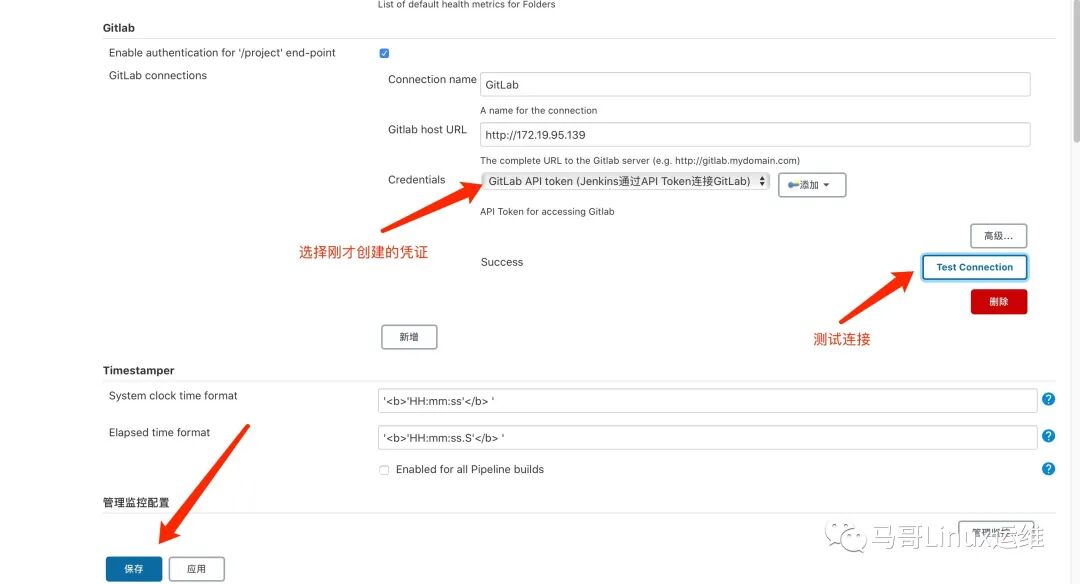

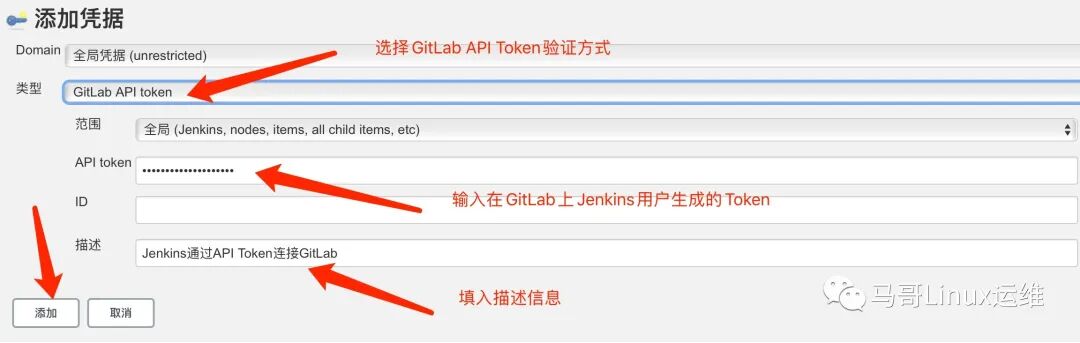

选择凭证，测试后保存

4.查看凭证现在有以下两种方式与GitLab进行认证

•通过GitLab上Jenkins用户的密钥(GitLab绑定Jenkins用户的公钥，Jenkins绑定GitLab上Jenkins用户的私钥)、•通过GitLab上Jenkins用户的API Token绑定到Jenkins上的GitLab authentication插件上进行连接。

Jenkins构建流水线

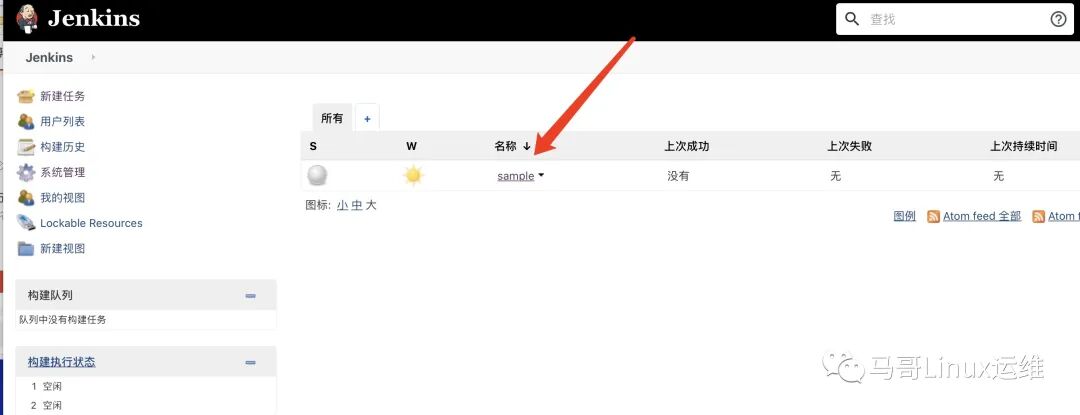

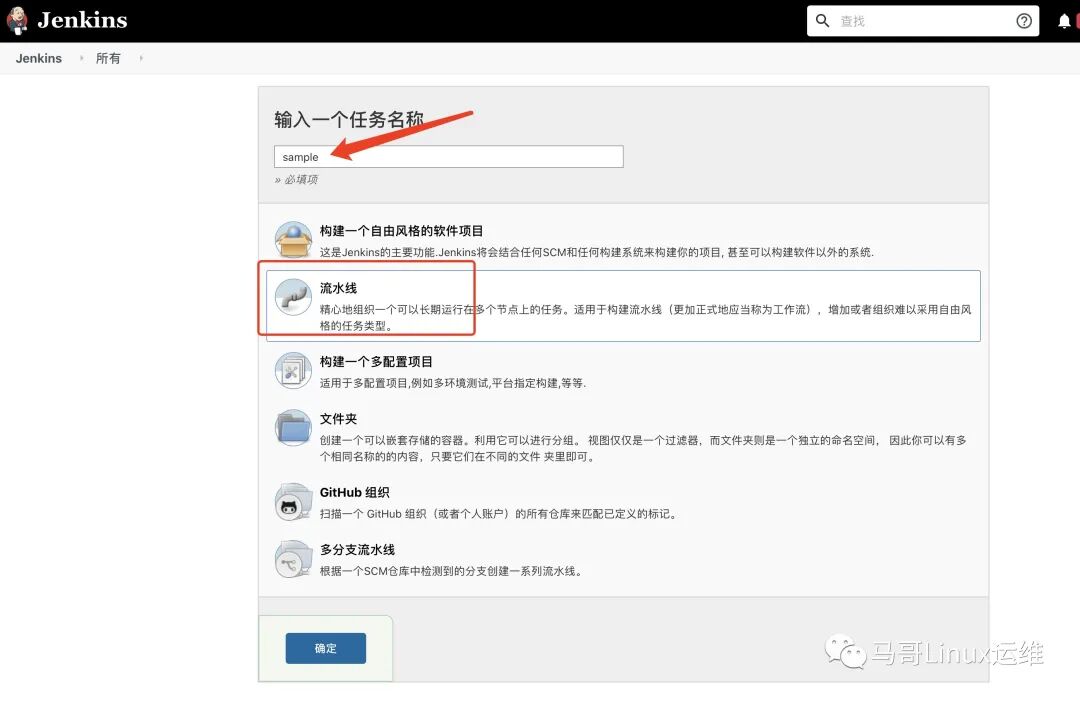

1.创建Project新建任务——》流水线

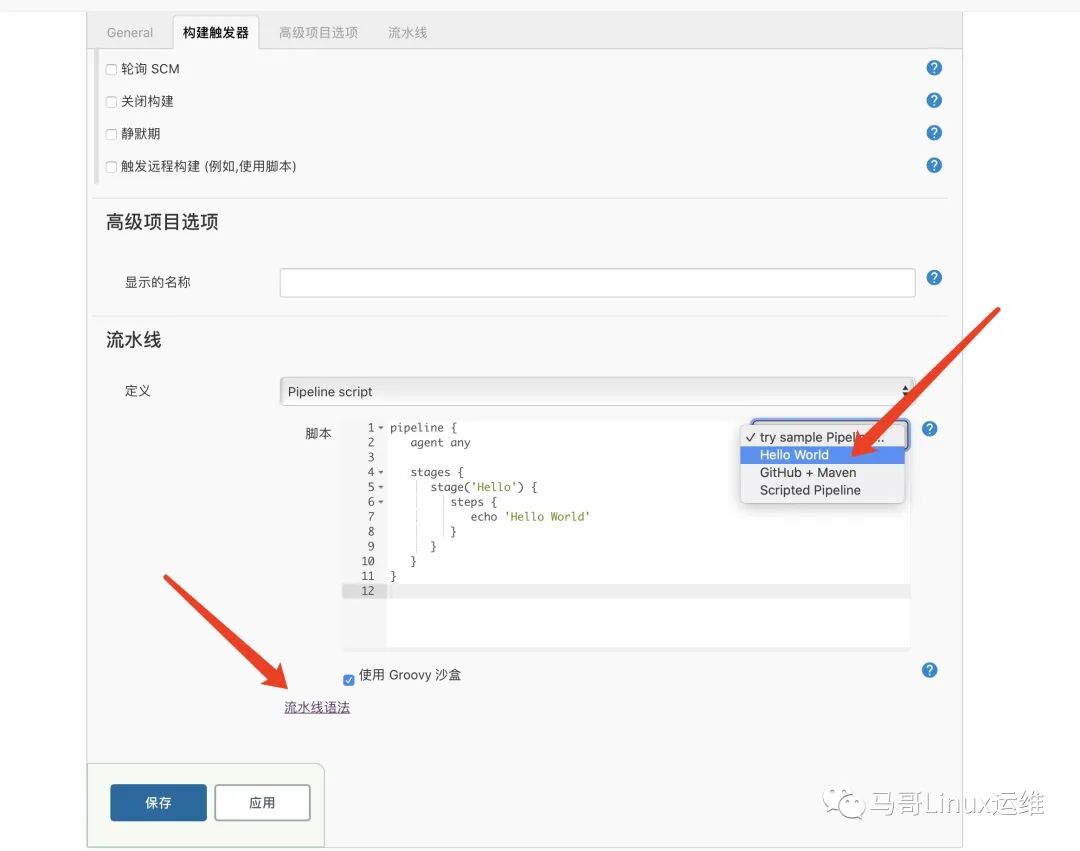

2.选择流水线语法

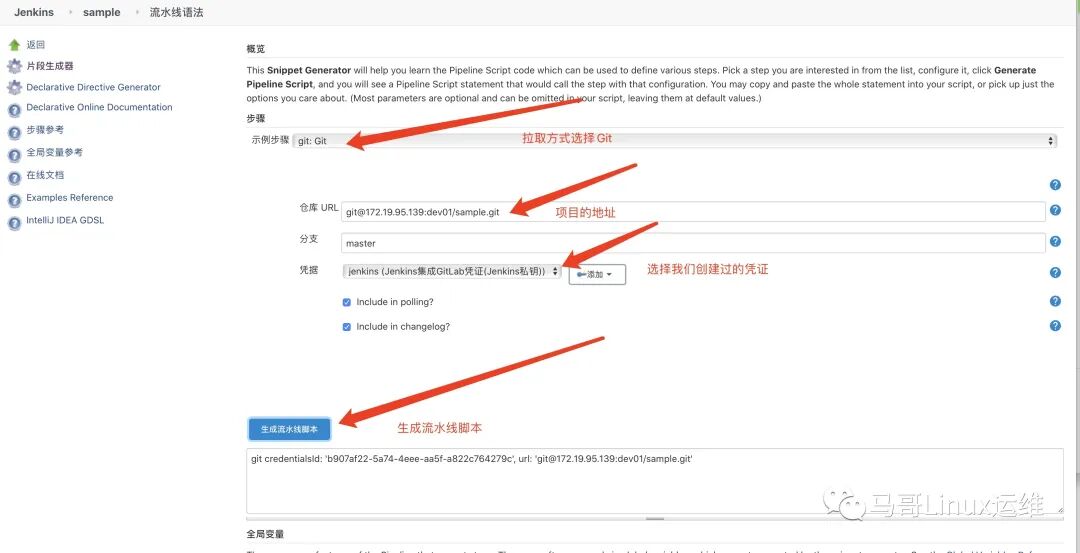

3.生成流水线脚本

复制生成的git脚本

4.编写Pipline脚本我这里脚本如下

node{stage(拉取代码){git credentialsId:b907af22-5a74-4eee-aa5f-a822c764279c,url:git@172.19.95.139:dev01/sample.gitecho"Code Pull"}stage(代码扫描){echo"Code Scanning"}stage(代码构建){echo"Code Build"}stage(是否部署){input是否部署}stage(开始部署){sh/opt/jenkins/sample/sample_release.sh}}

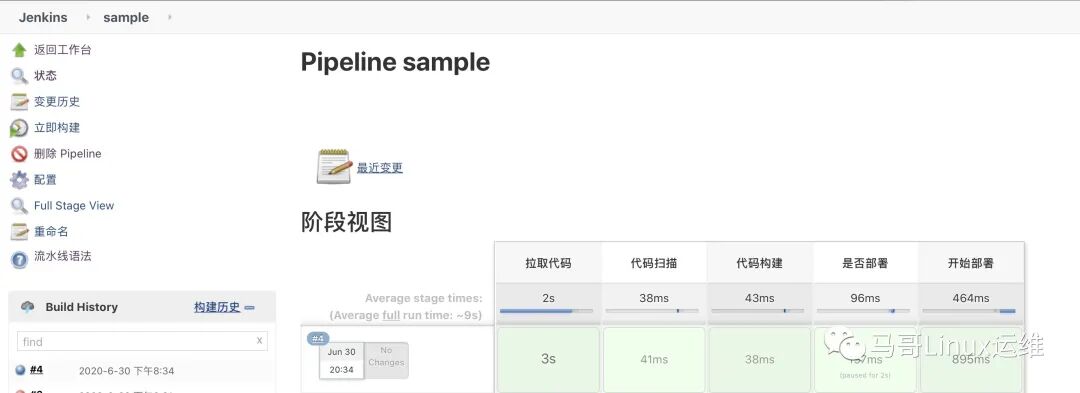

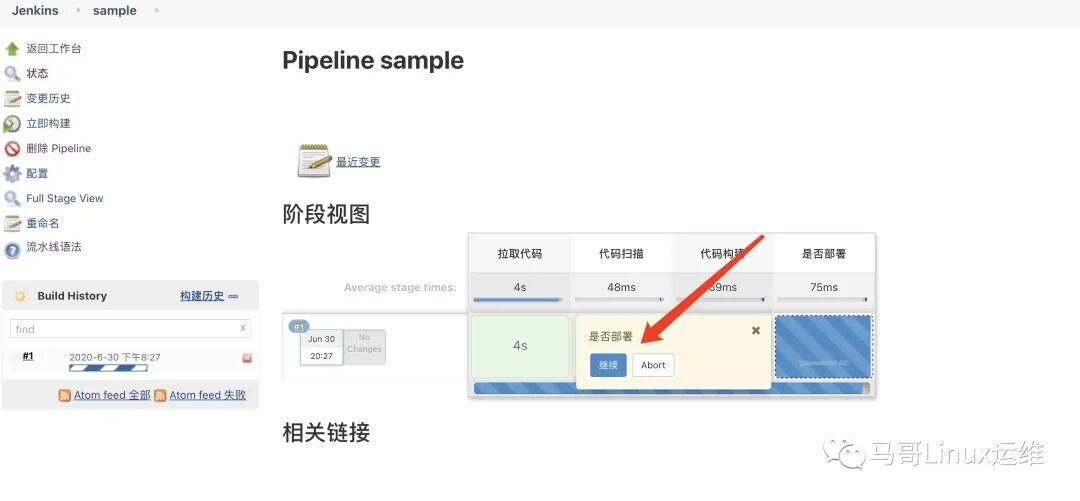

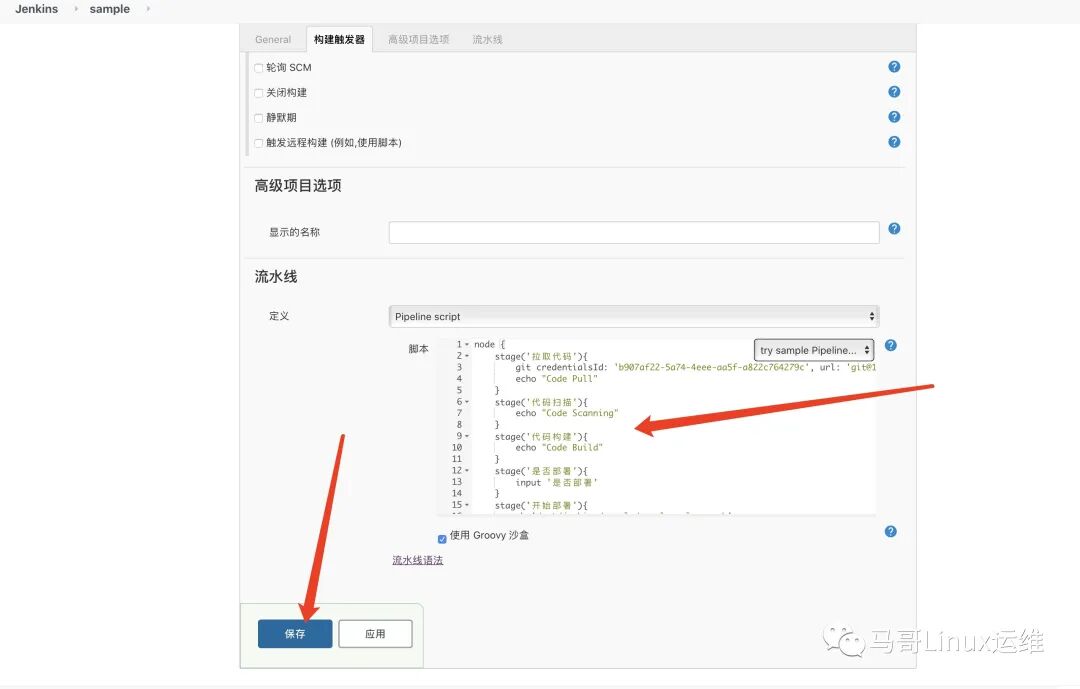

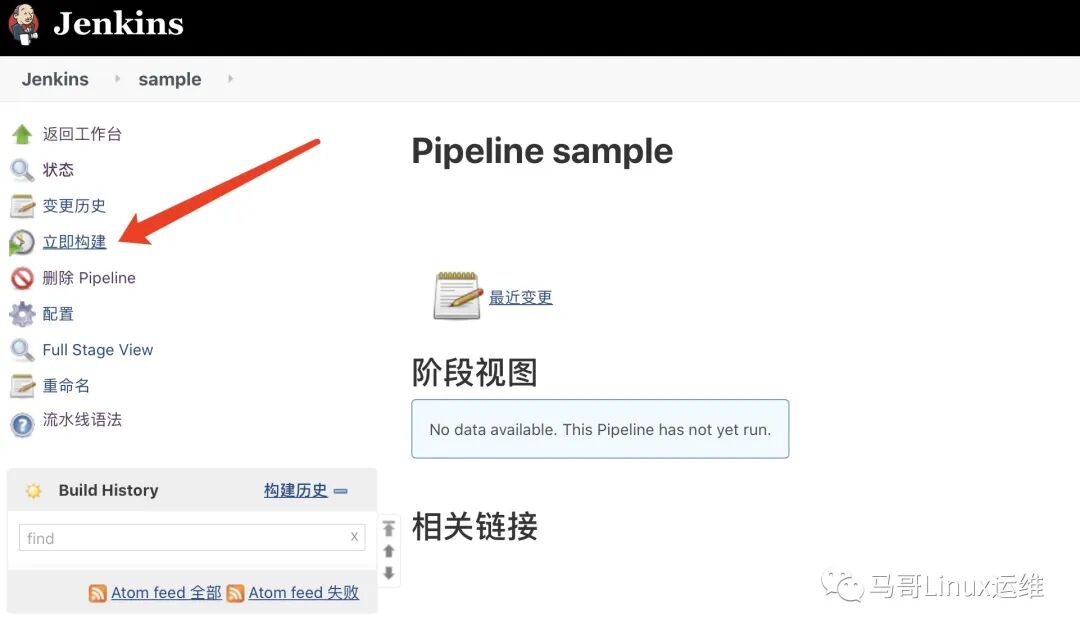

将以上脚本写流水线中

上面脚本最后执行了/opt/jenkins/sample/sample_release.sh脚本，我们到执行任务的Jenkins服务器上去编写这个部署脚本。脚本如下：jenkins服务器将/usr/local/src/sample.zip文件拷贝到了172.19.182.107上

[root@jenkins/]cat/opt/jenkins/sample/sample_release.sh!/usr/bin/env bashscp/usr/local/src/sample.zip root@172.19.182.107:/usr/local/

这里我们需要先让Jenkins服务器与172.19.182.107做免密登录,将Jenkins的公钥拷贝到172.19.182.107服务中的/root/.ssh/authorized_keys文件中

Jenkins的公钥(这里为root的公钥,Jenkins进程就需要用root用户运行)[root@jenkins/]cat/root/.ssh/id_rsa.pubssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC7ckQQf4N93Rjf0ts3Lk4siL6FZmZiBiB+ouwTgw9kKof2NeJTguf0aNfDsgSEet4+bJ53ZKztsFZE/C+sqk7grqeLeYDFBWgdZBz1dmCYT51tRFmZPDEDclOIMc2tz0G50g6DFA1dvIfkzeVbKjBNN0o80FSAwAzrtjMrkyaDcrOmYekiSPM8JYJTTcFLCzIBXz7SXOmKH5vyoAIVpdcwnIhkHNLKfD0MdzGb7Kz/pKMnLubodcxyNir6fqw76qwMe1DE0NtQzpaCrTYhVnAizVqCDek0GMZjTG1vWYNn6a8G7omV3Gde1XjcmjAj6ftVQiVLBRJaIGKI4R/B//nd root@jenkins172.19.182.107服务器的authorized_keys文件cat/root/.ssh/authorized_keysssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC7ckQQf4N93Rjf0ts3Lk4siL6FZmZiBiB+ouwTgw9kKof2NeJTguf0aNfDsgSEet4+bJ53ZKztsFZE/C+sqk7grqeLeYDFBWgdZBz1dmCYT51tRFmZPDEDclOIMc2tz0G50g6DFA1dvIfkzeVbKjBNN0o80FSAwAzrtjMrkyaDcrOmYekiSPM8JYJTTcFLCzIBXz7SXOmKH5vyoAIVpdcwnIhkHNLKfD0MdzGb7Kz/pKMnLubodcxyNir6fqw76qwMe1DE0NtQzpaCrTYhVnAizVqCDek0GMZjTG1vWYNn6a8G7omV3Gde1XjcmjAj6ftVQiVLBRJaIGKI4R/B//nd root@jenkins测试免密登录[root@jenkins/]ssh root@172.19.182.107Lastlogin:TueJun3020:26:122020from172.19.206.72WelcometoAlibabaCloudElasticComputeService!
