KubeSphere与Jenkins的集成解析
❝作者:gfengwong
原文链接[1]
KubeSphere 的 DevOps 模块介绍
KubeSphere 使用可插拔的 DevOps 模块实现 DevOps 功能;
DevOps 驱动 Jenkins 实现具体的操作,例如流水线等。
DevOps 与 KubeSphere 的关系如下图, 详细的组件介绍[2]。
集成的亮点
DevOps 与 Jenkins 集成紧密且优雅,从构建、部署到使用维护纯云原生方式实现:
一键部署;
一个参数启用 DevOps 功能;
一个 K8s 集群内即可完成从 Jenkins、流水线的全生命周期。
具体集成说明
用户使用 KubeSphere 平台的 DevOps 功能时,调用 devops-api 发送请求,DevOps 收到请求后,部分请求直接调用 jenkins 进行操作,部分请求通过更新 devops-controller 监听的资源,通过 devops-controller 来操作 Jenkins。
运行流水线阶段,Jenkins 配置了 K8s 动态 slave:
Jenkins pod 信息(镜像、卷等)发送给 K8s;
K8s 启动 Jenkins slave pod 并通过远程协议与 Jenkins master 建立连接;
运行流水线;
运行完毕之后根据设置删除/保留创建的 pod。
Jenkins 镜像构建
Jenkins 本身是一个 Java 应用,当前也没有提供官方的云原生方案,KubeSphere 通过下面几个项目定制了自己的镜像:
custom-war-packager[3]定制自己的 Jenkins 并生成 Docker 镜像或者 war 镜像;
formulas[4]通过 formula.yaml 定制自己的 Jenkins,针对中国区优化;
ks-jenkins[5]定制了 KubeSphere 自己的 Jenkins 镜像 使用了 jcli 集成了 cwp。
ks-devops 项目中的 formulas 安装了所有需要的 Jenkins 插件主要有
Blue Ocean 提供了 Jenkins 的 restful API;
kubernetes[6]提供了动态 slave 能力;
kubesphere-token-auth[7]集成 KubeSphere 权限体系;
其他。
Jenkins 与 DevOps 的部署
ks-installer(Ansible) 生成环境变量,主要有:
要不要使用 ksauth;
生成 ksauth 使用的密码;
主要环境变量在 https://github.com/kubesphere/ks-installer/blob/master/roles/ks-devops/templates/ks-devops-values.yaml.j2 ;
helm 部署 DevOps 和Jenkins helm 项目[8]。
ks-devops-helm-chart:
这个项目里面主要有三个 chart。
DevOps
部署 devops-apiserver 和 devops-controller。
❝注意 ⚠️ 这里有一个 cronjob 作用为清理执行过的流水线记录,定期执行
ks pip gc
。
主要部署的资源有:
deployment
devops-apiserver
devops-controller
cronjob
devops
configmap
devops-config
jenkins-agent-config
Jenkins
Jenkins 配置:
Maven 配置
charts/ks-devops/charts/jenkins/templates/jenkins-agent-config.yaml
配置 Jenkins dynamic slave
charts/ks-devops/charts/jenkins/templates/jenkins-casc-config.yml
自动化配置 Jenkins Configure Clouds
配置 K8s 认证
配置 pod volume image lable 等
会将上面的 Maven 配置挂在到 Maven 容器中
将 Maven 配置和 casc 配置以 configmap 的方式挂在到 Jenkins 容器的
/var/jenkins_home/casc_configs
, 从 helm 的 value 获取value.yaml
charts/ks-devops/charts/jenkins/values.yaml
中定义了:mariler 插件 -- 绑定邮箱
K8s 插件 -- 创建 K8s credential
RBAC 配置
环境变量 从 value 读出配置到容器中,设置了登陆用的用户名密码
初始化脚本 -- 在 helm 渲染 Jenkins deploy 时挂载到 configmap 中
Jenkins pod 初始化:
K8s 插件配置
charts/ks-devops/charts/jenkins/templates/config.yaml
slave-to-master-security-kill-switch
禁用 agent 访问控制机制拷贝 config.xml 到容器
/var/jenkins_home
将用于初始化的 groovy 文件拷贝到
/var/jenkins_home/init.groovy.d
初始化用于 cloud 的 credential
Kubernetes service account
Mailer 模块初始化
RBAC 初始化:创建 admin 和 kubesphere-user 对应的 role 做绑定
Sonarqube 初始化
用户初始化,创建 admin 用户并设置密码
创建 role
kubesphere-user
所有资源只读并绑定到authenticated
用户ladp 配置,对接 kubesphere ladp
cloud 配置:pod template container 配置、挂载等等,包括 Maven 配置、Docker sock 等
config.xml
apply_config.sh jenkins 工作目录初始化
deployment
charts/ks-devops/charts/jenkins/templates/jenkins-master-deployment.yaml
jvm 参数
admin 用户名密码
超时配置
邮箱配置
设置环境变量
limit注意:默认 memory 为 2g,一般是不够用的,跑多个任务就会引起 pod crash,所以至少设置成 4g
initContainer 运行
/var/jenkins_config/apply_config.sh
初始化 jenkins 配置,如安装插件、配置 cloud、rbac 等等
到这里 Jenkins pod 就创建出来了,我们可以直接开始使用 Jenkins 运行流水线了。
Jenkins K8s 动态 slave
KubeSphere 内置 Jenkins
配置:
KubeSphere 通过 ks-install 和 helm 都配置好了,无需单独配置。
使用:
以流水线为例,groovy 中添加以下字段会按照base
去匹配 pod 的 lable,匹配到了会使用这个 label 的 pod 模板启动 pod 运行流水线,下面有两个 pipeline 脚本,第一个是选定了 pod 的模板的会启动一个 pod 来执行,第二个 any,如果设置了 master 节点为Only build jobs with label expressions matching this node
将会启动 base pod 来运行,如果选择Use this node as much as possible
则会在 Jenkins 自身的容器/服务器上运行,如果是普通 job 的话,勾选Restrict where this project can be run
且填写Label Expression
选择要运行的 label,和 pipeline 类似。
pipeline {agent {node {labelbase}}stages {stage(Run shell) {steps {shecho hello world}}}}
pipeline {agent anystages {stage(Run shell) {steps {shecho hello world}}}}
独立部署的 Jenkins
cloud 配置 K8s:
Manage Node → Configure Clouds。
K8s;
K8s URL:K8s apiserver 地址, 与 KubeSphere 自带的 Jenkins 不同的是使用了集群内部链接;
K8s Namespace:slave pod 运行的 namespace;
Credentials:使用 secret file,上传 kubeconfig 与 KubeSphere 自带的 Jenkins 不同的是使用了
kubernetes service account
;使用 WebSocket 通信 -- 使用 Jenkins tunnel 通信;
Jenkins URL:Jenkins API 地址;
其他:其他的 pod 配置按需配置即可,这里和 KubeSphere 的一样。
Q & A
使用 Maven 构建时,Maven 仓库如何配置?
pod 所使用的 Maven 配置是挂载进去的,可以通过 Jenkins->Configuration->Maven Project Configuration 配置
KubeSphere → Jenkins → K8s,认证是如何实现的?
KubeSphere 与 Jenkins 的认证:
Jenkins 插件kubesphere-token-auth-plugin

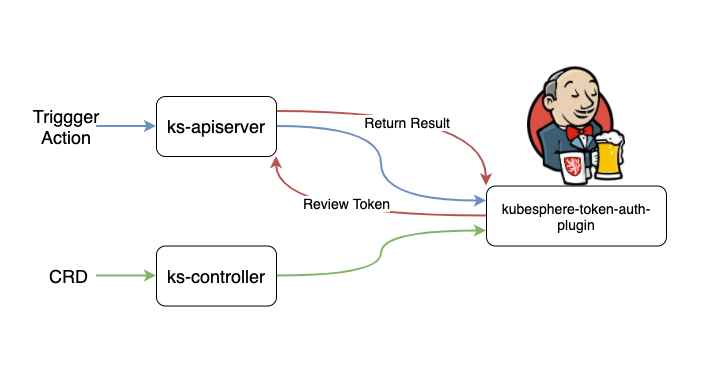

集成 KubeSphere 的认证体系,在 KubeSphere 调用 Jenkins 时,都需要经过 ks-apiserver 进行 token 的 review, 通过之后再调用 Jenkins 执行实际动作
Jenkins 使用驱动 K8s 实现动态 slave:
Jenkins 的 deployment 中声明了
serviceAccountName
devops-jenkins
;启动的 pod 会将对应 serviceAccount 的 token 写入 pod 文件系统中
/var/run/secrets/kubernetes.io/serviceaccount/token
;Jenkins K8s 插件会去读 pod 文件系统的 token,这样就可以通过 token 来调度 K8s 资源实现 slave pod 的创建删除。
如果是外置 Jenkins 则无法通过读取 token 来连接 K8s,需要手动创建 serviceAccount、clusterRole、clusterRoleBinding,然后将 token 以 Secret text 或者将 ca 证书以 Secret file 形式或将 kubconfig 以 Secret file 形式写入 credentials。
部署使用问题
误删 apiserivice
kubectl delete --all apiservice
解决方式
参照:https://github.com/kubernetes/kubernetes/issues/75704
将kube-apiserver.yaml
移到其他文件夹,这时 kube-apiserver 的 pod 会 down 掉。
mv /etc/kubernetes/manifests/kube-apiserver.yaml /etc/kubernetes/
在其他 API 正常的节点删除这个 pod,再将配置文件移回去,即可恢复。
KubeSphere API 服务无法启动
版本:KubeSphere v3.3.0。
错误描述
❝install failed, ks-controller CrashLoopBackOff
E1116 00:55:15.113761 1 notification_controller.go:113] get /, Kind= informer error, no matches for kind "Config" in version "notification.kubesphere.io/v2beta1"F1116 00:55:15.113806 1 server.go:340] unable to register controllers to the manager: no matches for kind "Config" in version "notification.kubesphere.io/v2beta1"
解决方式
参照:kubectl apply -f https://raw.githubusercontent.com/kubesphere/notification-manager/master/config/bundle.yaml[9]。
kubectl apply -f https://raw.githubusercontent.com/kubesphere/notification-manager/master/config/bundle.yaml
JNLP 容器无法启动
JNLP 是 Jenkin 的远程调用协议。
[root@k8s-1 ~]kubectl logs -f -n kubesphere-devops-worker base-w9dpq jnlpWarning: SECRET is defined twiceincommand-line arguments and the environment variableWarning: AGENT_NAME is defined twiceincommand-line arguments and the environment variableSep 14, 2022 11:29:43 AM hudson.remoting.jnlp.Main createEngineINFO: Setting up agent: base-w9dpqSep 14, 2022 11:29:44 AM hudson.remoting.jnlp.Main$CuiListenerINFO: Jenkins agent is runninginheadless mode.Sep 14, 2022 11:29:44 AM hudson.remoting.Engine startEngineINFO: Using Remoting version: 4.10Sep 14, 2022 11:29:44 AM org.jenkinsci.remoting.engine.WorkDirManager initializeWorkDirINFO: Using /home/jenkins/agent/remoting as a remoting work directorySep 14, 2022 11:29:44 AM org.jenkinsci.remoting.engine.WorkDirManager setupLoggingINFO: Both error and output logs will be printed to /home/jenkins/agent/remotingSep 14, 2022 11:29:44 AM hudson.remoting.jnlp.Main$CuiListenerstatusINFO: Locating server among [http://172.16.80.38:8080/]Sep 14, 2022 11:29:44 AM hudson.remoting.jnlp.Main$CuiListenererrorSEVERE: http://172.16.80.38:8080/tcpSlaveAgentListener/ is invalid: 404 Not Foundjava.io.IOException: http://172.16.80.38:8080/tcpSlaveAgentListener/ is invalid: 404 Not Foundat org.jenkinsci.remoting.engine.JnlpAgentEndpointResolver.resolve(JnlpAgentEndpointResolver.java:219)at hudson.remoting.Engine.innerRun(Engine.java:724)at hudson.remoting.Engine.run(Engine.java:540)
Sep 14, 2022 11:33:41 AM hudson.remoting.jnlp.Main$CuiListener statusINFO: Locating server among [http://devops-jenkins.kubesphere-devops-system:80/]Sep 14, 2022 11:33:42 AM org.jenkinsci.remoting.engine.JnlpAgentEndpointResolver resolveINFO: Remoting server accepts the following protocols: [JNLP4-connect, Ping]Sep 14, 2022 11:33:42 AM org.jenkinsci.remoting.engine.JnlpAgentEndpointResolver resolveINFO: Remoting TCP connection tunneling is enabled. Skipping the TCP Agent Listener Port availability checkSep 14, 2022 11:33:42 AM hudson.remoting.jnlp.Main$CuiListener statusINFO: Agent discovery successfulAgent address: devops-jenkins-agent.kubesphere-devops-systemAgent port: 50000Identity: 13:ea:2b:ab:b5:16:70:70:89:58:d1:66:2b:62:b1:16Sep 14, 2022 11:33:42 AM hudson.remoting.jnlp.Main$CuiListener statusINFO: HandshakingSep 14, 2022 11:33:42 AM hudson.remoting.jnlp.Main$CuiListener statusINFO: Connecting to devops-jenkins-agent.kubesphere-devops-system:50000Sep 14, 2022 11:33:42 AM hudson.remoting.jnlp.Main$CuiListener statusINFO: Trying protocol: JNLP4-connectSep 14, 2022 11:33:42 AM org.jenkinsci.remoting.protocol.impl.BIONetworkLayer$Reader runINFO: Waiting for ProtocolStack to start.Sep 14, 2022 11:33:46 AM hudson.remoting.jnlp.Main$CuiListener statusINFO: Remote identity confirmed: 13:ea:2b:ab:b5:16:70:70:89:58:d1:66:2b:62:b1:16Sep 14, 2022 11:33:46 AM hudson.remoting.jnlp.Main$CuiListener statusINFO: ConnectedSep 14, 2022 11:33:58 AM org.csanchez.jenkins.plugins.kubernetes.KubernetesSlave$SlaveDisconnector callINFO: Disabled agent engine reconnects.
附录:认证备忘
ks-installer/roles/ks-core/init-token/tasks/main.yaml
生成一个随机值 secret;部署 KubeSphere 的时候初始化通过
ks-installer/roles/ks-core/init-token/files/jwt-script/jwt.sh
生成了一个 jwt token 入参为上面生成的字符串和 {"email": "admin@kubesphere.io","username": "admin","token_type": "static_token"};通过生成的 token 和 secret 创建 secret 名为 kubesphere-secret;
部署 DevOps 的时候将填入
authentication.jwtSecret devops.password
通过 helm 部署 DevOps;部署 Jenkin 的密码为写死的"P@ssw0rd";
admin password 生成了一个随机的 22 位字符串写入 Jenkins pod 环境变了并通过读取 configmap devops-jenkins 启动 Jenkins。
